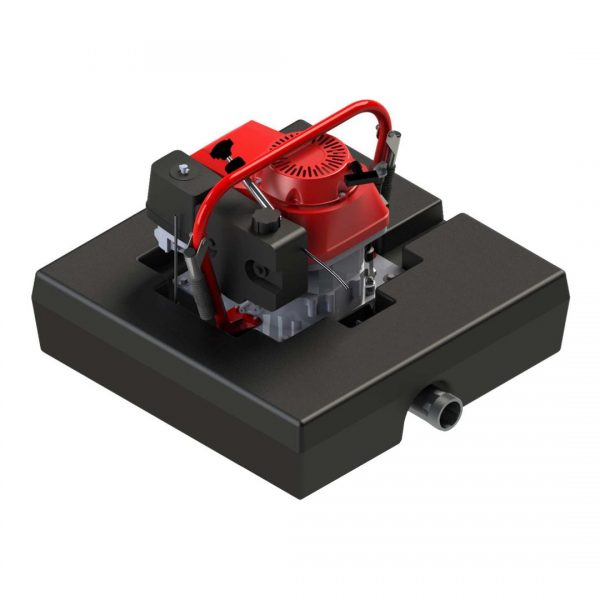

Centrifugal floating motor pump
performances
HONDA Petrol engine
1500 l / min at 0,7 Bar
340 l / min at 5 Bar
Further information
| Weight | 54 kg |
|---|---|
| Dimensions | 81,9x76,2x56,1 cm |
| Engines |
Petrol engine
These pumps have a Pressure / Flow ratio that allows them to serve both as a pump for exhaustion, or water supply, or as a fire pump. Very light, they can be easily implemented.
Features
- Corrosion-resistant aluminum pump body
- Stainless steel shaft and bearings
- Bronze turbine mechanically balanced against vibrations
- Self-priming

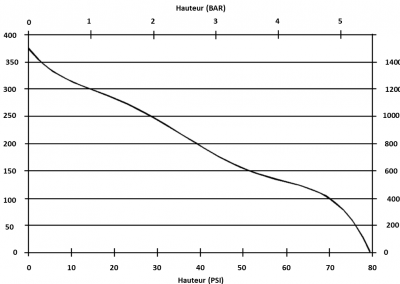

Performance
1500 l / min @ 0,7 Bars
1150 l / min @ 1,7 Bars
720 l / min @ 3,2 Bars
340 l / min @ 5 Bars
Pump Specifications
• Aluminum centrifugal pump with transmission
• Bronze turbine.
• Mechanical seal
• Automatic priming
• 2 '1/2 discharge
• Self-priming

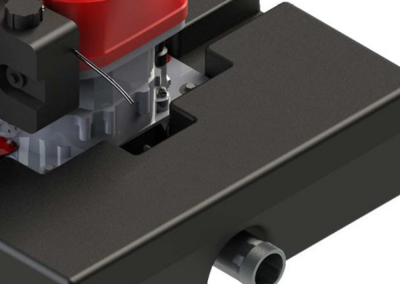

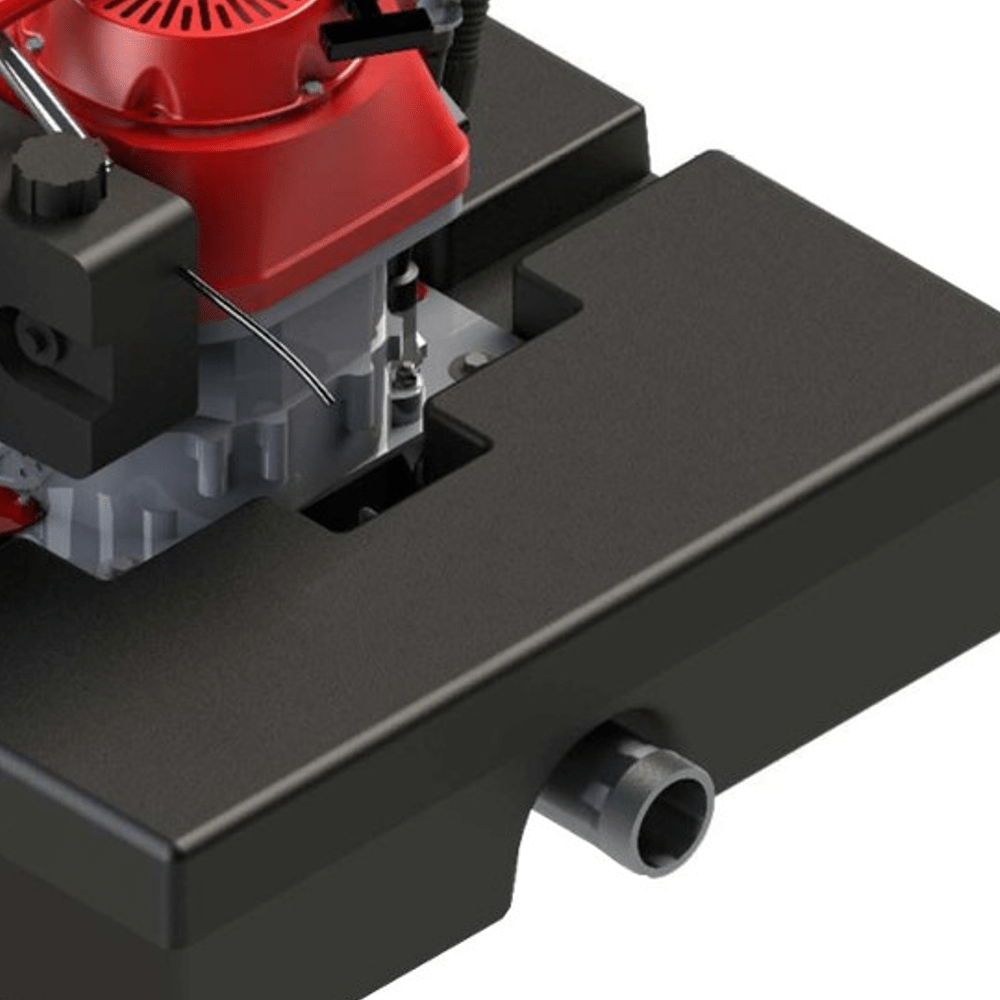

• 2 '1/2 (65mm) discharge
• 3 '' suction
• Light and resistant float

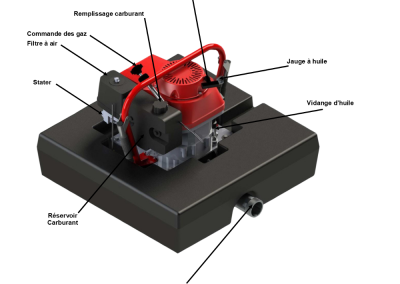

Engine Specifications
• 11hp petrol engine at 3600 RPM.
• Air cooling
• Manual launcher
• Oil safety
