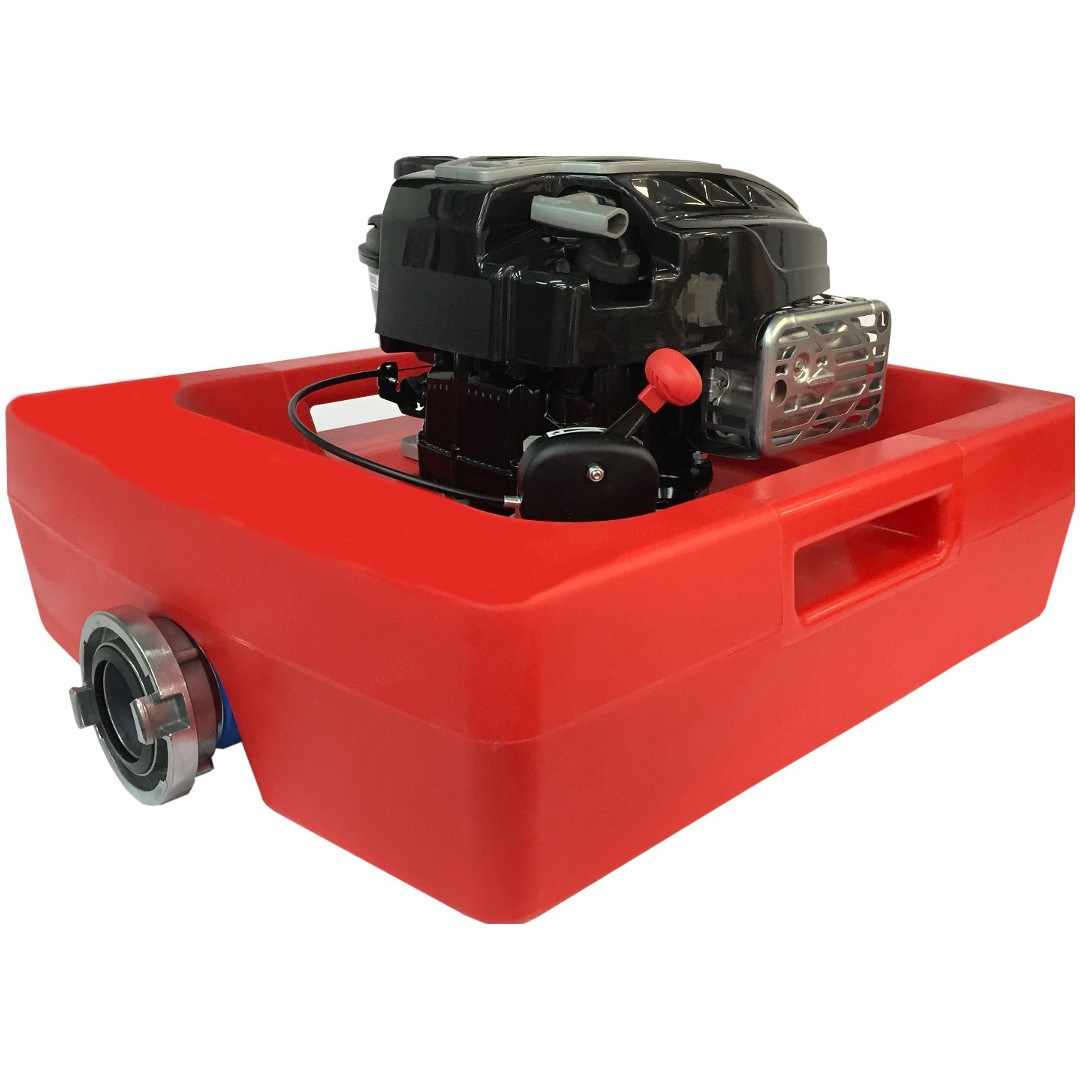

Floating motor pumps - BS series

performances

BRIGGS & STRATTON Petrol engine
Maximum flow of your choice: at 980 l / min   OU   at 1240 l / min
HMT: 15m



Further information

Weight 25 kg
Dimensions 78x61x39 cm
Engines


Information

reference:

EFP-800BS / EFP-1200BS

Categories: Application job:

Briggs & Stratton 850 series engine
Aluminum centrifugal pump
Polyethylene float with carrying handle
The device can be used by firefighters to fill fire tanks with water from natural outdoor water sources.
It can also be used for pumping water in flooded areas and rooms and for other applications, for example agriculture, construction sites, etc.
The pump housing is bolted to the motor flange and to the float. The bottom side of the case is fitted with a plastic film to prevent access to dirt and debris 20mm in diameter. The discharge outlet of the EFP-800BS-FL is fitted with a 2 '' hose coupling and the EFP-1200BS-FL is fitted with a 2 '' 1/2 coupling
The body of the float is made of polyethylene by centrifugal injection in a single block. The 20mm inner wall of light polyurethane foam to increase exceptional resistance on the water surface. The two handles are used both for transporting and handling the device and for fixing a rope to secure it in its position. The design of the pump allows dry running without damage.

EFP-800BS-FL

Max flow 980 l / min
Hmt 15 m
Motor Briggs & Stratton 850 series
Engine power 3.8 kW / 5.1 HP
Tank capacity 1.1 l
Suction connection 4 "
Discharge connection 2 "
Fuel SP95 gasoline
Overall dimension 780 x 610 x390 mm
Unloaded weight 24.3 kg

EFP-1200BS-FL

Max flow 1240 l / min
Hmt 15 m
Motor Briggs & Stratton 850 series
Engine power 3.8 kW / 5.1 HP
Tank capacity 1.1 l
Suction connection 4 "
Discharge connection 2 "1/2
Fuel SP95 gasoline
Overall dimension 780 x 610 x390 mm
Unloaded weight 25.2 kg

A selection of pumps adapted to your specific needs

Fire safety

Large range of firefighting and flood fighting motor pumps. Pumps can be skid-mounted, portable, or trailer-mounted

Marine - Sea water

Range of motor pumps resistant to sea water. Can be used for security services on ships and oil ports, commercial ports

Industrial building

Fire pumps are usually approved by a certification body and are powered by an electric or diesel engine or sometimes by a steam turbine.

Flood Construction site

Pumps used for lifting wastewater, evacuating loaded and muddy water, drying or irrigating.

Civil security

Motor pumps used during flooding to collect or drain water

Home Security

Motor pumps and a swimming pool to fight fires, as well as our range of cellar pumps intended for the evacuation of rainwater and clear water!
