High pressure fire engine with Rotax 48kW motorization
performances
- Petrol petrol engine
- Max flow 2100 l / min
- 1000 l / min at 15 bar
- 500 l / min at 16 bar
Further information
| Weight | 167 kg. |
|---|---|
| Dimensions | 94,5x72,5x84,0 cm |
| Engines |

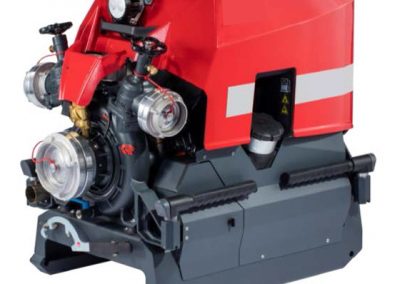

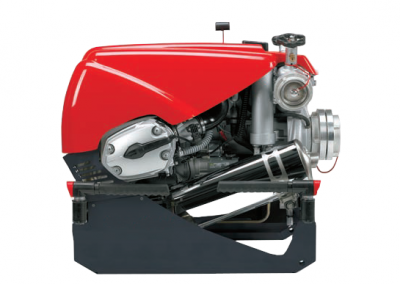

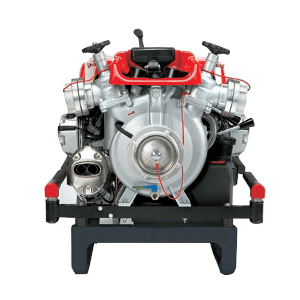

High pressure portable centrifugal fire pump
Engine: Petrol Complies with standard EN 14 466
Motor 4 stroke 3 cylinder
48 kW ROTAX engine
Displacement 899 cm3
Air cooling Electronic fuel injection
20 l fuel tank Electric starter

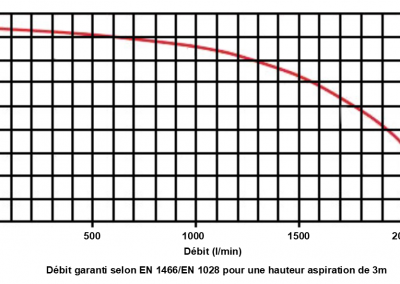

Max flow at a suction height of 3 m
1000 l / min at 15 bar
1650 l / min at 10 bar
2100 l / min at 4 bar
Suction: 1 X AR 100/110 fittings
Discharge: 2 X DSP 65/70 fittings
Hood with spotlights; control panel with tachometer, operating hours counter and control diodes for recharging the battery, oil pressure, fuel reserve and indication of engine faults,
Aluminum frame with four folding handles
One-stage centrifugal pump in anodized aluminum, anodized aluminum impeller with spherical blades, stainless steel shaft, pressure gauge on the suction side and the pressure side, the pump can be manually deactivated.
Initiator by piston pump with automatic control and possibility of manual stop suction time. 5 sec. for a suction height of 3 m and 20 sec. for a height of 7,5m.
Weight 167 kg ready for use (full tank)
Dimensions L x W x H approx. 945 x 735 x 840 mm
