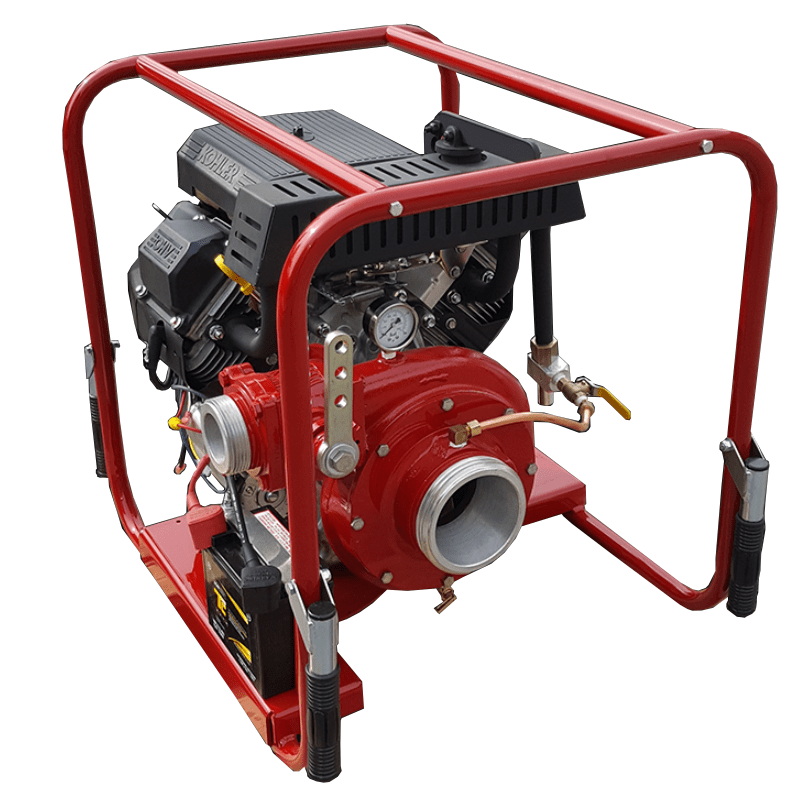

Fire engine and exhaustion transportable single turbine

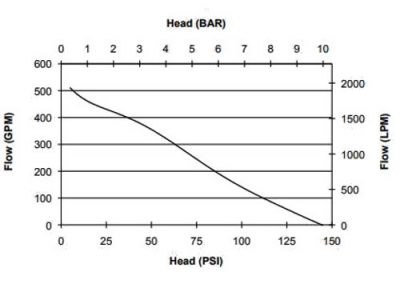

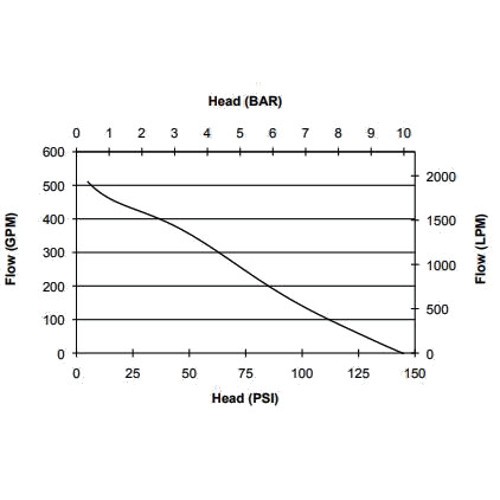

performances

Petrol petrol engine
Max flow 2000 l / min
1000 l / min at 5 bars
500 l / min at 8 bars

Further information

Weight 79 kg
Dimensions 88,8x63,5x58,4 cm
Engines

reference:

EFP-20KHL-MR

Categories: Application job:

Motor pump Fire or exhaustion high pressure and flow

Petrol engine

This motor pump is intended to fight against fire or to supply vehicles or water tanks.

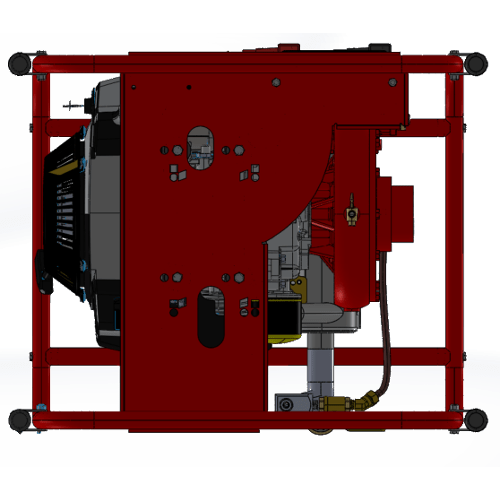

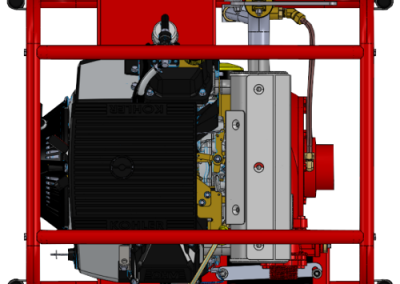

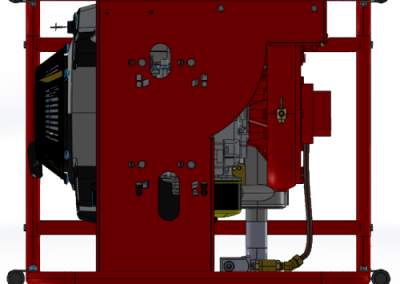

  • Pump and motor are mounted on a painted steel frame with handles.

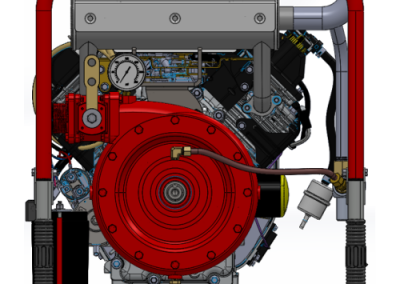

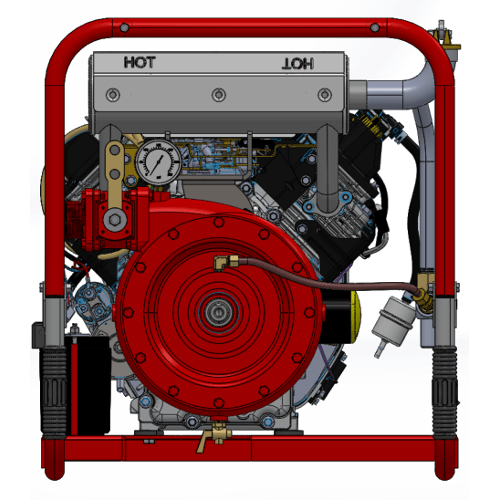

 Pump Specifications

• Single turbine centrifugal pump
• Pump body in resistant aluminum alloy
· (Bronze body option available)
• Bronze turbines
• Mechanical seal
• Stainless steel shaft
• Automatic ignition by guaranteed exhaust gas up to 6m.
• 1 outlet of 1 1/2 ”BSP (45 mm) with valve
• 1 suction of 2 ”1/2 BSP (70 mm)

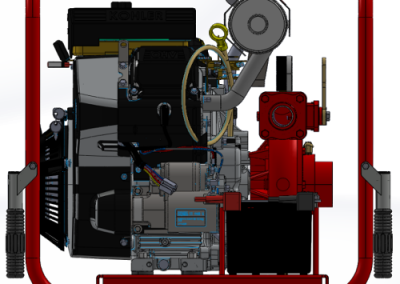

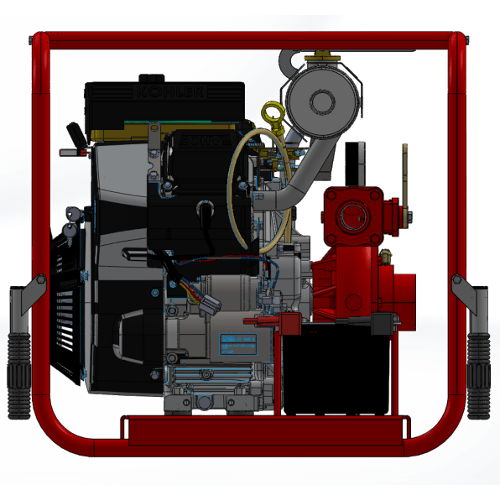

Engine Specifications

• Petrol engine Kholer 20 CV at 3600 rpm, air cooling
• 12V electric start
• Separate or attached 11 L tank

Options

• On / off button
• Accelerator lever
• Oil gauge
• Table lighting
• Pressure gauge
