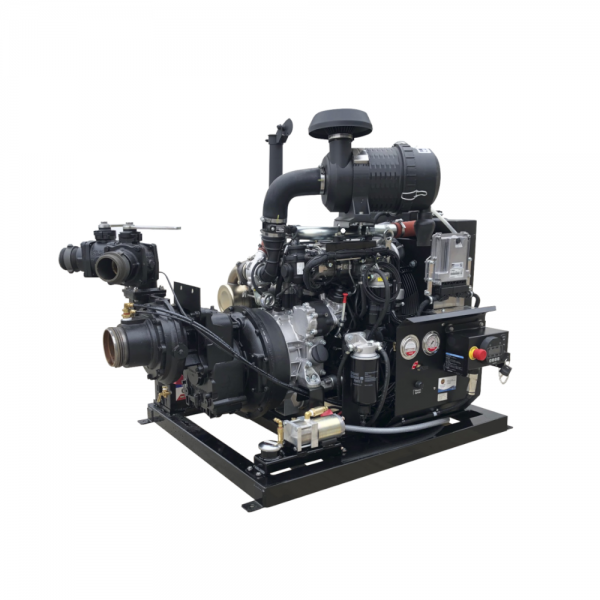

High pressure fire engine mounted on steel frame


  • Diesel heat engine
  • Max flow 2700 l / min
  • 2380 l/min at 6,9 bar
  • 378l/min at 13,5 bar

Further information

Weight 680 kg.
Length 157,5x94x150 cm




Categories: Application job:

High pressure & flow centrifugal fire engine

Diesel motor

This high pressure / high flow motor pump is designed to fight fire or supply vehicles and water tanks.

  • Pump and motor are mounted on a steel frame with control panel.

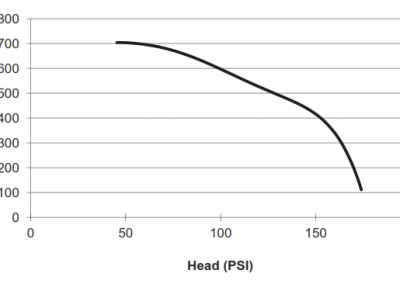

Performance at 1m

2570 l/min at 5 bar
2380 l/min at 6,9 bar
1700 l/min at 10 bar
378l/min at 13,5 bar

Pump Specifications

• Centrifugal pump
• Pump body in resistant aluminum alloy.
• Bronze turbines.
• Mechanical seal.
• Stainless steel shaft.
• Electric automatic priming
• 2 2 1/2 ”BSP (65 mm) outlets.
• 1 suction of 4 ”BSP (100 mm).

Engine Specifications

• Diesel engine HATZ 56HP @ 2600 rpm - 4 cylinders - liquid cooling
• 12V electric start.
• 22L tank sufficient for 2 hours autonomy

Accessories Included

• On / off button.
• Accelerator lever.
• Oil gauge.
• Table lighting.
• Pressure gauge.
